mRoy

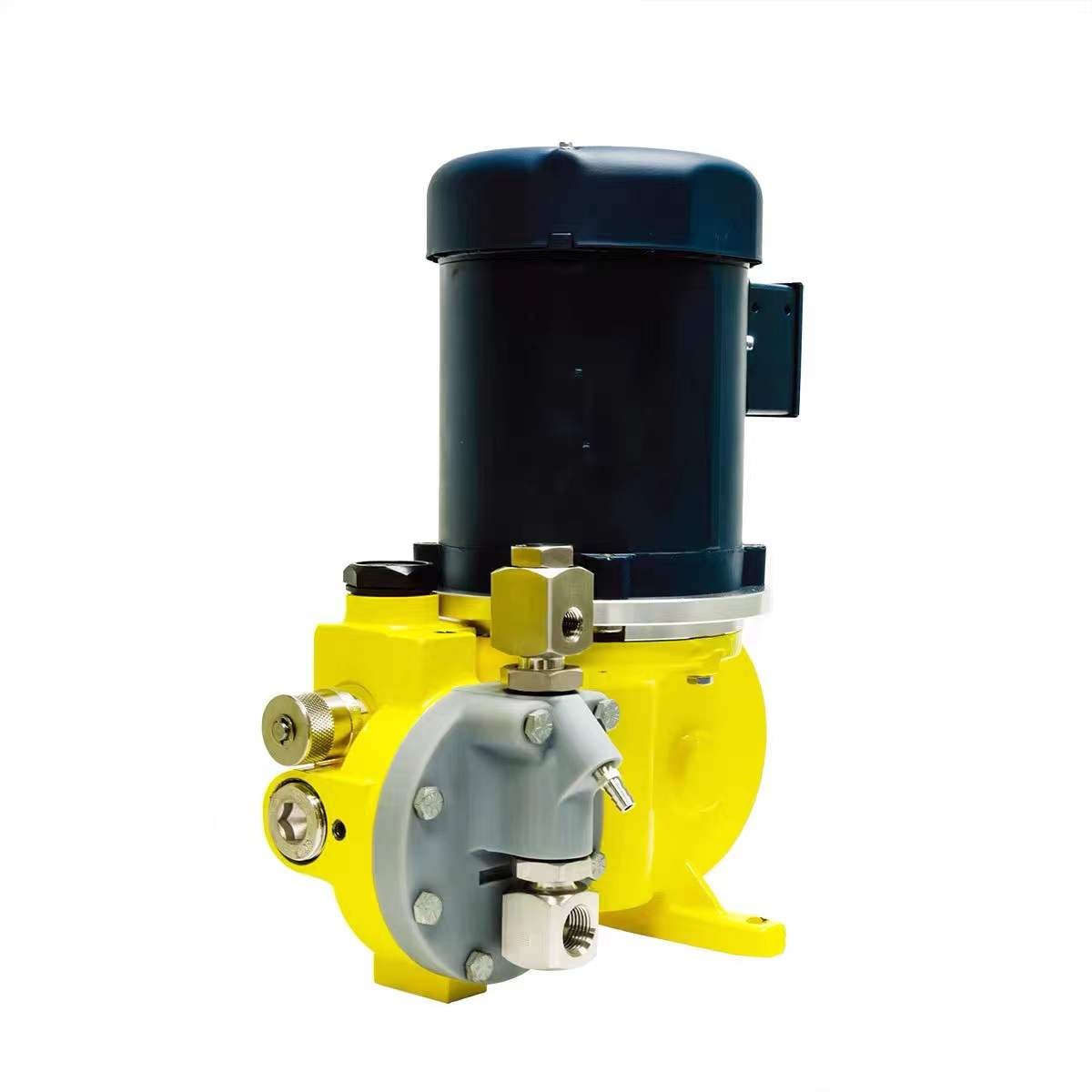

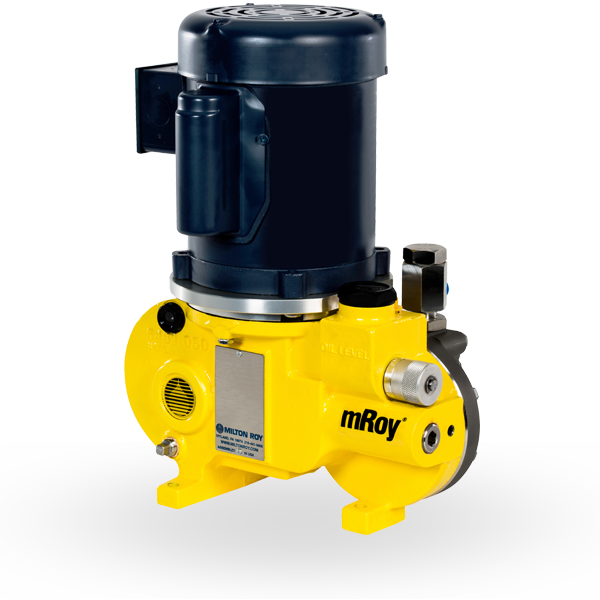

mROY® series model  metering pump is controlled-volume, hydraulically-actuated diaphragm pump that is designed for consistent chemical delivery. Its compact design contains a plunger that reciprocates at a fixed stroke, displacing a fixed volume of hydraulic fluid and thereby actuating a flexible, chemically inert PTFE diaphragm to create the pumping action. Designed to meet global industry standards, model A provides accurate dosing of a broad spectrum of fluids. Like all mROY® metering pumps, model A is built to run continually all year long with preventative maintenance, leading to decades of consistent performance.

Benefits:

• Hydraulically balanced PTFE diaphragm, designed for 96,000 hours operating life, does not use seals and eliminates plunger packing maintenance.

• Liquid end bleed system makes it easier to commission a new or a newly maintained pump.

• Worm and pinion drive operating in an oil bath lubrication produces a smooth mechanical motion that eliminates wear and tear of mechanical lost motion designs and assures long gear and bearing life.

• Dust-tight cast iron housing provides a rugged enclosure for operation in the harshest plant and field environments.

• Micrometer capacity adjustment enables accurate output flow control.

• Internal hydraulic pressure relief valve automatically protects the pump’s hydraulic system from over pressure conditions.

• High-performance, adjustable, cartridge-type check valves provide positive, repeatable sealing on every pump stroke.

• The pump meets standards for API 675.

Applications:

Injection of chemicals such as coagulants, biocides, disinfectants, polymers, softening agents, acids and bases for pH control, scale and corrosion inhibitors, oxygen scavengers, process additives, and many more for the following areas of application:

•Municipal water & wastewater treatment

•Industrial water & wastewater treatment

•Chemical and petrochemical processing

•Cooling towers and boilers

•Oil and gas production

•Pharmaceuticals production

•Power generation

•Agriculture

Technical:

Flow rate from      0.20 gph (0.8 l/hr) up to 79 gph (299 l/hr)

Hydraulically      balanced diaphragm with 96,000 hour design life

Turndown ratios      up to 100:1 for a full range of adjustments based on plant treatment      requirements

Accuracy ± 1.0%      over a 10:1 turndown   ratio
