Pump capacity: 14.20 - 7,425.00 l / h
Back pressure: 400.0 - 10.0 bar
PTFE multi-layer diaphragm with integral diaphragm rupture warning system
Metering reproducibility is better than ±1% within the 10–100% stroke length range under defined conditions and with correct installation
Power end configuration ideal for installation in any position (vertical or horizontal).
Overview:
Maximum process reliability and flexibility.

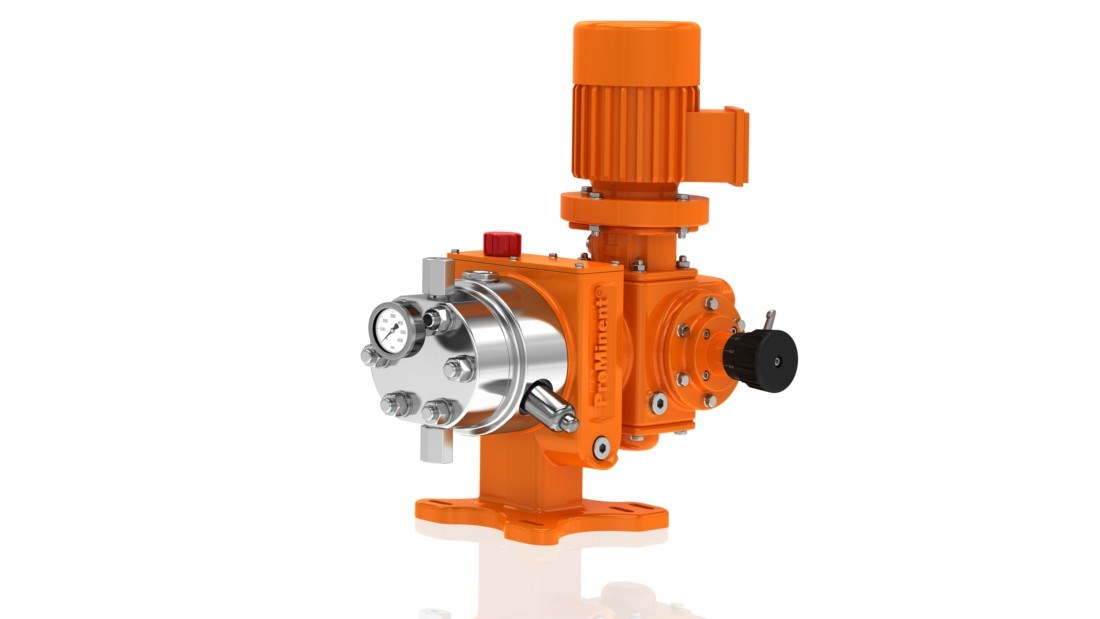

The Orlita® Evolution hydraulic diaphragm metering pump range of EF1a, EF2a, EF3a and EF4a form an integrated product range with stroke lengths of 15 to 40 mm. This covers the capacity range of 3 to 7,400 l/h at 400 – 10 bar. A wide range of drive versions is available, including some with ATEX certification for use in Zone 1 or Zone 2 areas at risk from explosion. The Orlita® Evolution product range is designed to comply with API 675.
Applications:
Field of application
Oil and gas industry
Metering of reactants and catalysts in the chemical industry
Volume-proportional metering of chemicals/additives in the treatment of boiler feed water
Level-dependent metering of auxiliary agents in industrial production engineering, for instance hot wax metering in the production of adhesive strips
